Driver & Guard Seat

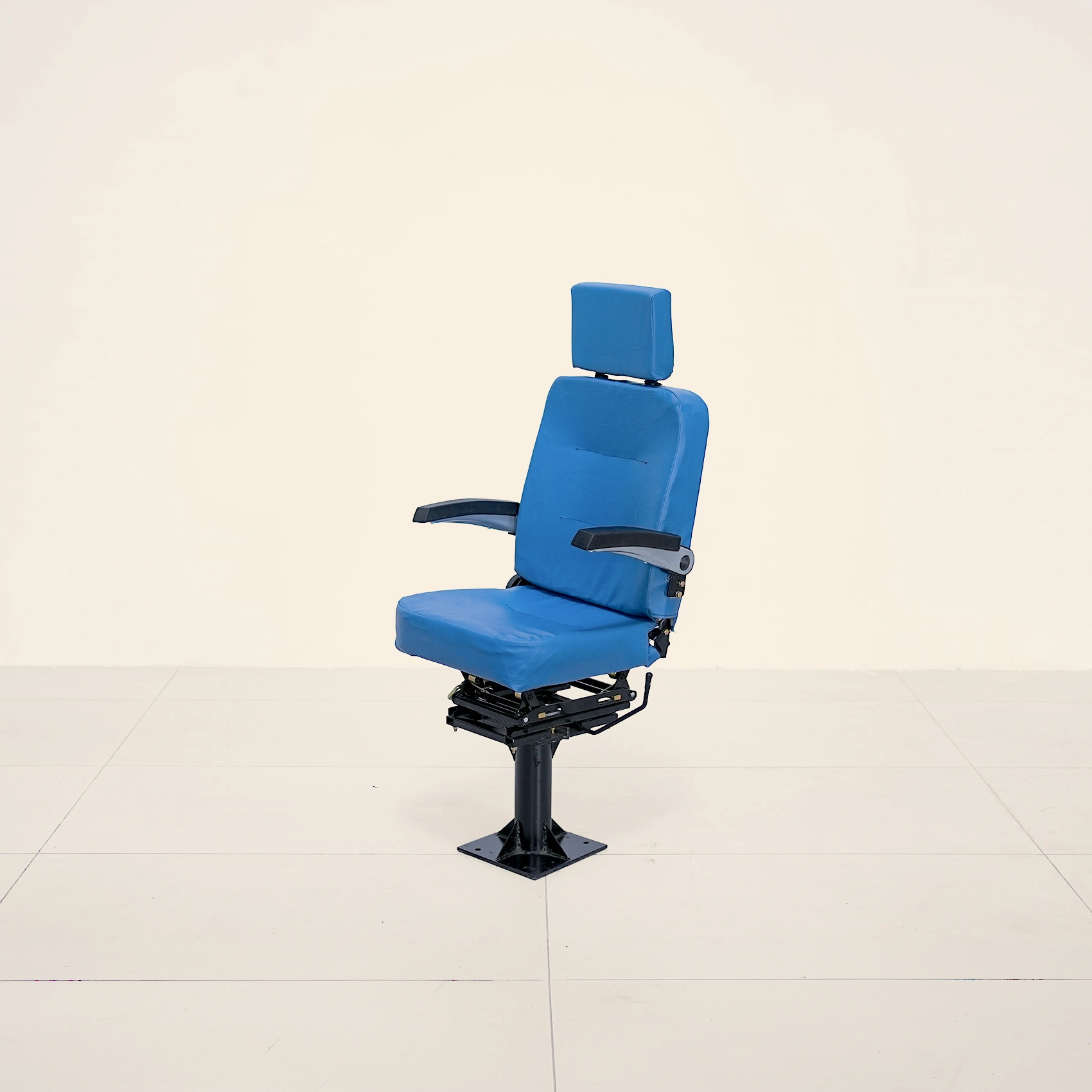

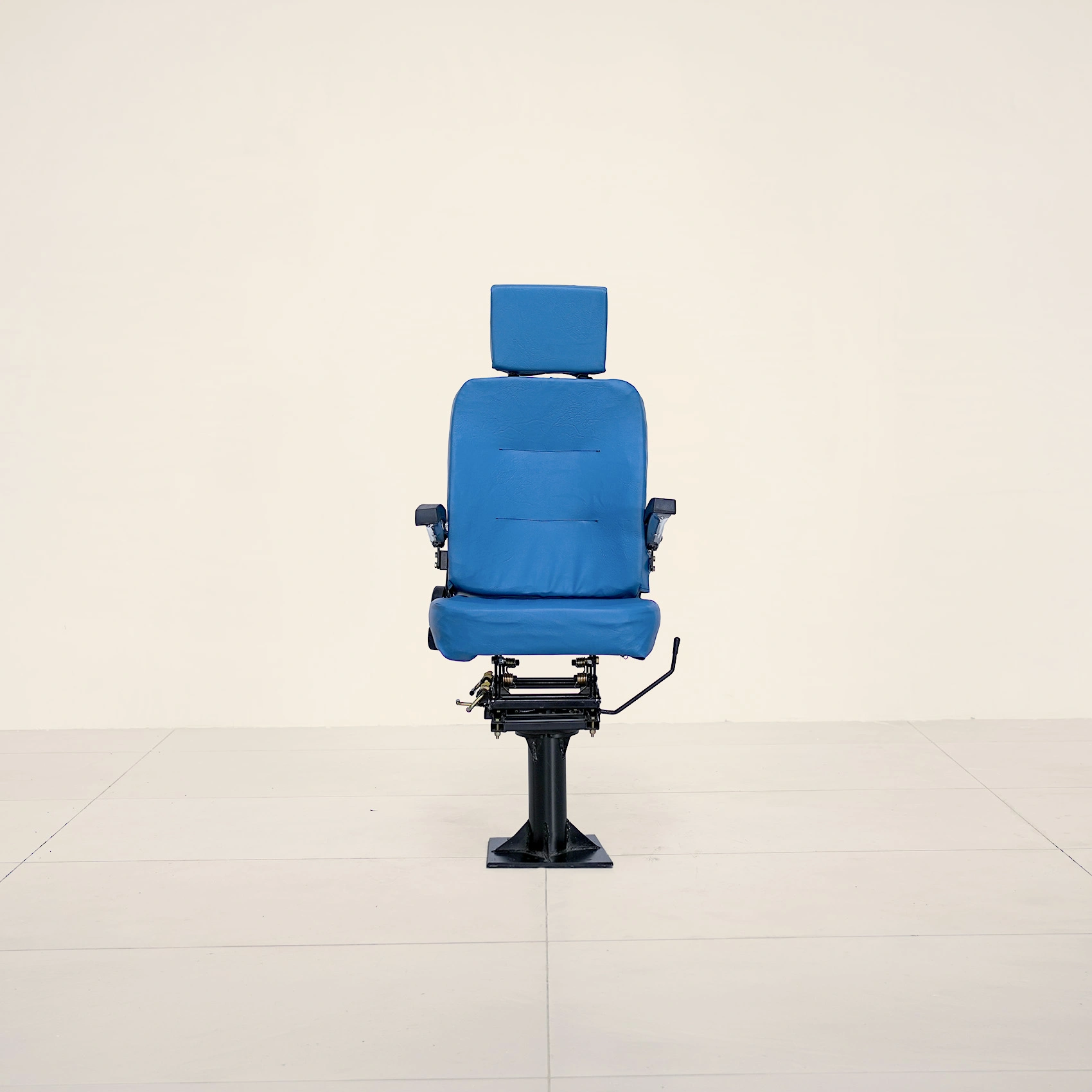

Railway Driver Seats & Railway Guard Seats manufactured by MSL is engineered to deliver precision, comfort, and operational safety within demanding cabin environments. Designed with advanced ergonomics and smooth adjustability, these railway seats support optimal posture and ease of movement for long duty hours. Built using high-strength materials and fire-compliant components, they ensure durability and reliability under intensive use. With a focus on functionality, safety and driver well-being, MSL is a preferred manufacturer of railway seats in India, delivering products tailored to meet the rigorous demands of modern railway operations.
Features
Pedestal & mounting system
Base type:
- Heavy-duty cylindrical pedestal with a square/circular floor mounting plate.
Rotation:
- 360° Swivel mechanism with a locking lever to allow the driver/guard to exit the workstation easily in cramped cabins.
Height adjustment:
- Pneumatic or mechanical screw-jack type height adjustment (Range: 100mm – 150mm).
Material:
- High-tensile steel with heavy-duty powder coating to resist cabin moisture and industrial wear.
Seat ergonomics & comfort
Headrest:
- Height-adjustable and detachable headrest for cervical support.
Armrest:
- Flip-up (foldable) PU padded armrests to facilitate easy entry/exit.
Cushioning:
- Anatomically contoured Polyurethane (PU) foam with high density (50 to 60 kg/m3).
Backrest:
- Reclining mechanism with a tension-adjustable lumbar support system.
Safety & compliance
Fire safety:
- Complying with EN 45545-2 (European Railway Standard for Fire Safety) and RDSO specifications (e.g. C-K607).
Upholstery & finish
Material:
- Specialised Heavy-Duty Vinyl (PVC Leather) or Fire-retardant (FR) fabric.
Colour:
- Industrial Blue (as shown), typically selected for its ability to hide dirt and stains.
Approved by:
DMU/DPC cabin window frame
MRVC window frame
DMU/DPC window frame
Driver cabin window frame

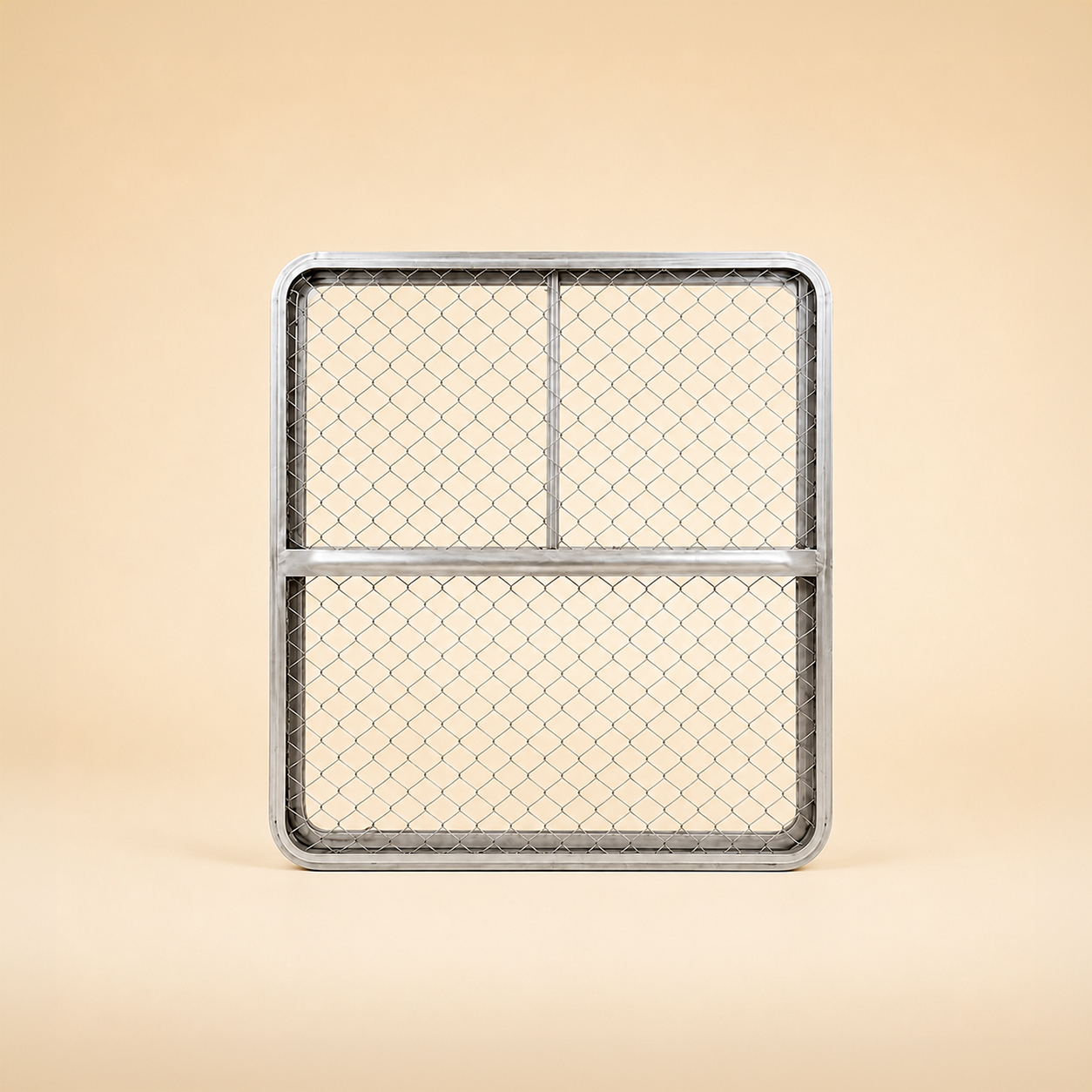

Body side window frame with fixed louver shutter
